1026 lines outputs、64 gray scale/262,144 color
TFT LCD Source Driver

ES(Engineering Sample): NOW
MP(Massproduction) : NOW

Advantage

Outputs	1026 Outputs
OUTPUT SWICHING	Switch a shift direction of data
	(S1,S2,S3,S4,S5,S6→S1021,S1022,S1023,S1024,S1025,S1026 / S1024,S1025,S1026,S1021,S1022,S1023→S4,S5,S6,S1,S2,S3)
DAC	6bit
Drive Method	2H Inversion
Input Reference Vol.	14 Gray Scale
Gamma Correction	possible
Digital Power Vol.	2.7～3.6V(VCC)
Analog Power Vol.	16.5V(VLS)
Half-VLS Power	impossible
Data I/F	mini-LVDS(Max230MHz) 3pair mode

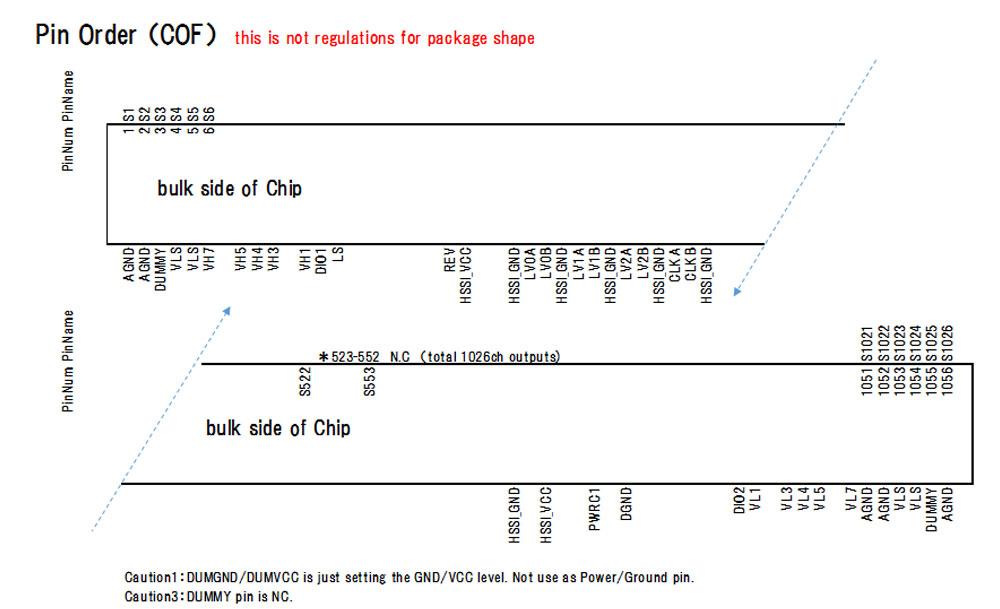

Package	COF
